If you want your building to have solid support, understanding concrete beam foundations is a good place to start. A concrete beam foundation uses concrete beams to support the weight of a structure, spreading the load and making it stable and reliable. These foundations run around the edge of your home, often sitting under exterior walls to hold everything steady.
Why do people go for this type of foundation? Well, concrete beam foundations can use less concrete than some alternatives, which might save you money and time. They’re built to handle a range of ground conditions, so you don’t have to worry as much if your site isn’t perfect. If you’re curious about how these foundations actually work and what makes them different, here’s a good overview on grade beam foundations.
If you’re planning to build or renovate, knowing the basics of a concrete beam foundation helps you ask better questions and avoid surprises. Let’s break down what you need to know before you get started.
Understanding Concrete Beam Foundations
Concrete beam foundations are a solid pick for supporting buildings, especially when the soil is unpredictable. They use a mix of concrete beams and piers or blocks to spread out the weight and keep your place level.
What Is a Concrete Beam Foundation?
A concrete beam foundation is basically a system where reinforced concrete beams run beneath or along the edges of a building. These beams act as the backbone, holding up the walls and floors.
You’ll often see beams paired with vertical supports like piers or blocks. This keeps everything stable and helps prevent cracks or shifting if the ground moves underneath.
Some homes use a grade beam foundation, where the beams rest on piles or piers instead of just sitting on the soil. This approach can cut down on concrete use and still give you plenty of strength.
Key Components and Structure
Here’s what goes into a concrete beam foundation:
- Beams: Horizontal, reinforced concrete elements that spread out the building’s weight.

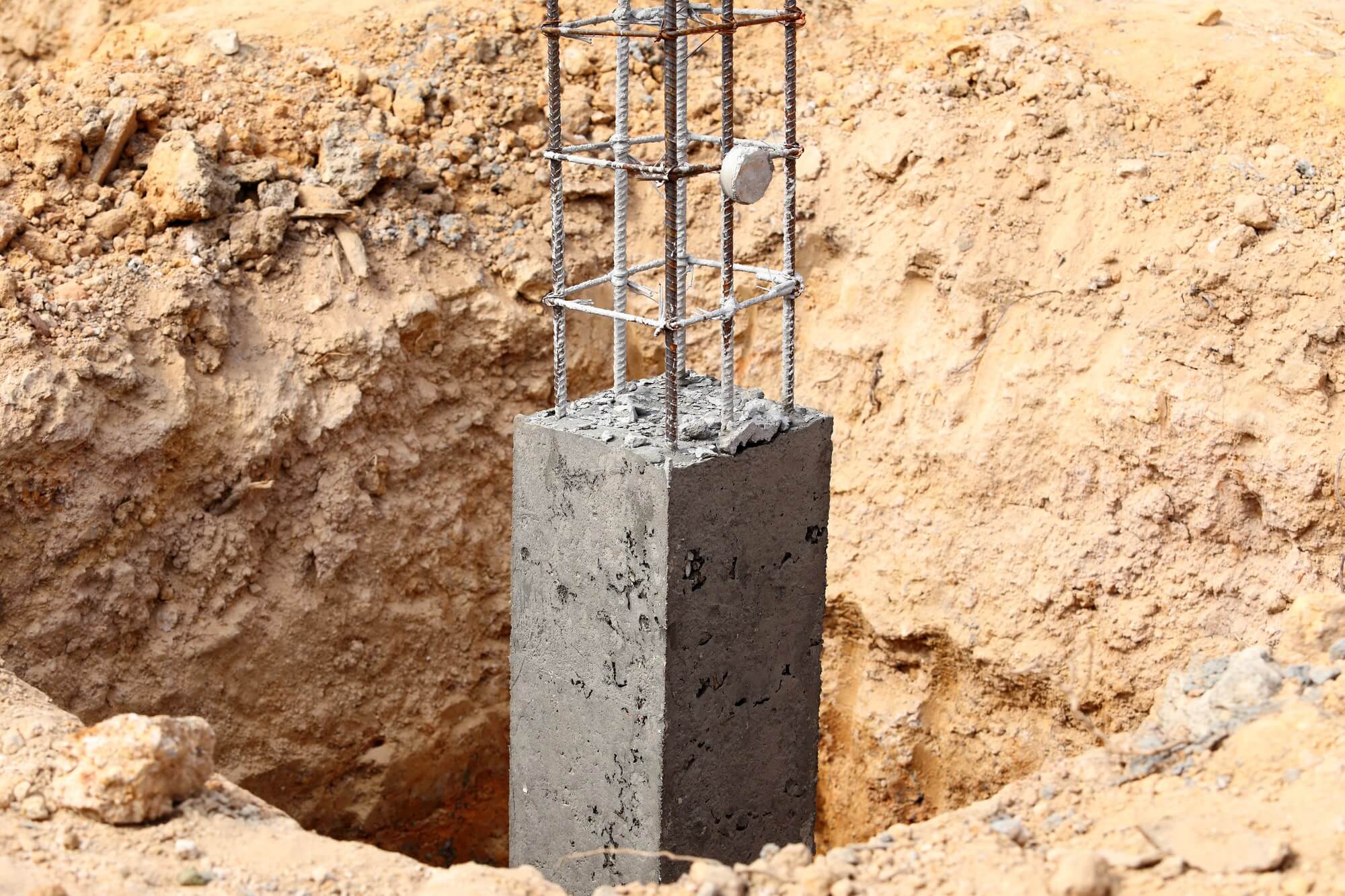

- Piers or Columns: Vertical supports that carry loads down to deeper, firmer ground.
- Slabs or Blocks: Sometimes used with beams to add support and help spread pressure even more.
Beams are usually set under load-bearing walls or around the building’s edge. Depending on what you need, they can be rectangular or T-shaped. You’ll often see beams tied to concrete piers in a pier and beam foundation, which raises the house up and leaves space underneath.
Common Types of Concrete Beam Foundations
Some of the most common types you’ll run into:
- Grade Beam Foundations: Beams sit on piers or piles, making them a good fit for areas with weak or shifting soil.
- Pier and Beam Foundations: Piers give vertical support, and beams carry the house above.
- Block and Beam Foundations: Precast blocks support the beams, and the building sits on top.
- Combined Systems: Sometimes, you’ll see both slabs and beams used for extra strength—especially with bigger or heavier buildings.
Each type works best for different soils, building sizes, and needs. Knowing the options helps you pick what’s right for your project.
Concrete Beam Foundation vs. Other Foundation Types
Concrete beam foundations are popular for their strength and reliability, especially if the ground tends to shift. Comparing them with other types helps you figure out what’s best for your needs—whether you’re thinking about cost, durability, or how much work it’ll take to keep things in good shape.
Pier and Beam vs. Slab
Pier and beam foundations use concrete or wood piers to support beams under your house, creating a crawl space between the ground and the first floor. That crawl space? Super handy for plumbing or electrical repairs, since you can get underneath without tearing up floors.
A slab foundation is a solid concrete base poured right on the ground. There’s no crawl space, which helps keep pests out and usually costs less up front. But if you ever need to fix pipes or wires, you might be looking at breaking through concrete—never fun.
Pier and beam setups work well where the soil shifts or isn’t level. Slabs can crack if the ground moves, but they’re quicker to install and use less material. Here’s a deeper dive into the differences.
Concrete Slab or Pier and Beam
Trying to choose between a concrete slab or pier and beam foundation? Think about your budget, how much maintenance you want, and what your property needs. Slabs are usually cheaper to build and give you a solid, moisture-resistant base. But if something goes wrong with pipes or wiring, repairs can get expensive fast.
Pier and beam foundations have their upsides. They keep your house higher off the ground, which can help with flooding. It’s also easier to get under the house if you need to fix something. Still, these foundations might need more ongoing care, especially if wood beams are involved.
Some homes do better with pier and beam in places where the ground moves a lot or flooding is a risk. Others are fine with a slab if the climate is dry and the soil is steady. For more details, check out this comparison at HD Foundation Repair.
Pier and Beam Foundation vs. Slab
A pier and beam foundation is usually best if your soil is unpredictable or you want easy access to plumbing and wiring. These homes sit higher and are less likely to have moisture or pest problems, but you might lose a bit of efficiency with heating and cooling because of the air gap underneath.
Slab foundations are flat and sturdy, good for newer homes where you don’t need crawl space access. They’re less likely to sag, but cracks can be a headache if the soil shifts. Repairs can also get pricey since everything’s locked in concrete.
Your choice really depends on your budget, where you live, and your long-term plans for the property. If you want to dig deeper, this Angi article has more on construction, costs, and repairs.

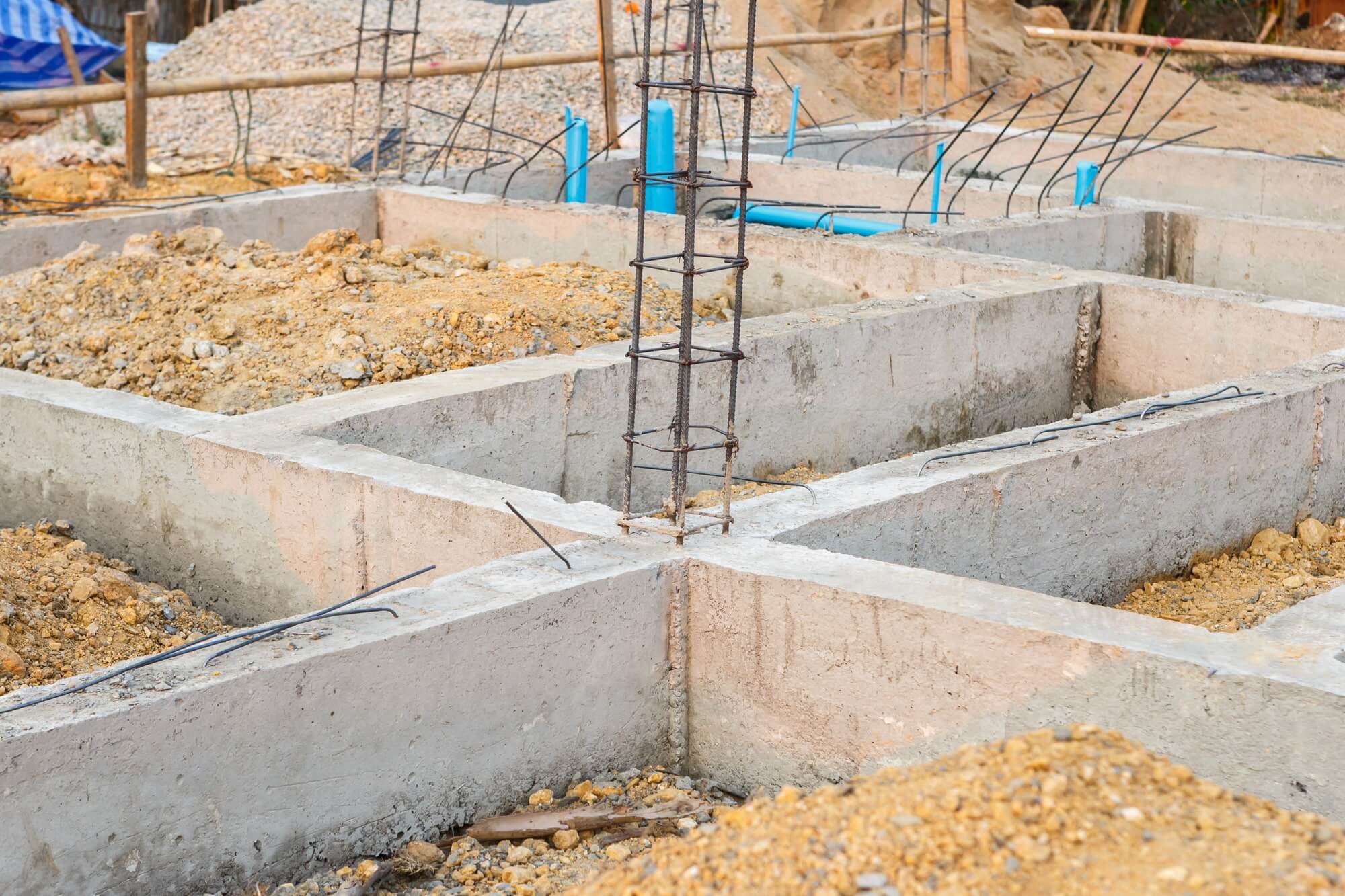

Design and Construction Process
Building a concrete beam foundation isn’t something you want to rush. It takes real planning, good materials, and careful steps all the way through. Every phase matters if you want your foundation beam to last.
Site Preparation and Planning
Good site prep is the first step. Start with a clear, level area. Remove any debris, plants, or leftover junk. Soil tests help you figure out if the ground’s strong enough.
Lay out the foundation lines with stakes and string. Dig down to the depth your design calls for, and make sure the bottom of the trench is packed nice and tight. If the soil isn’t compacted, your foundation could settle or shift later—definitely not what you want.
Don’t forget about drainage. Water pooling around your foundation is a disaster waiting to happen. If the site holds water, add gravel or drainage pipes before you start pouring. It’s a pain now, but it’ll save you a ton of trouble later.
Reinforcement and Materials
Using strong materials and proper reinforcement is key. Concrete does the heavy lifting, but steel rebar is what keeps everything from cracking under pressure. The steel bars are set in a grid or lattice inside the forms, making sure the whole foundation beam can handle the load.
Spacers keep the rebar off the ground so it ends up fully surrounded by concrete. Don’t skimp on materials—bad concrete or rusty rebar will just cause problems. After setting up the forms and reinforcement, double-check that everything’s lined up and secure. If you want a step-by-step look, here’s a guide to building a pier and beam foundation.
Concrete Pouring and Curing
Pouring concrete is where it all comes together. Fill the forms, making sure the concrete gets into every corner and around all the rebar. Give the forms a good tap or vibrate them to get rid of air bubbles—those just weaken the finished beam.
Once poured, leave the concrete alone while it cures. Curing takes several days and the concrete needs to stay moist, so cover it with wet burlap or plastic. If it dries out too fast, it could crack or get weak.
Usually, you’ll want to let it cure for at least a week, though longer is better if you can wait. Only after curing should you remove the forms and move on with building. For a closer look at the process, check out this video guide on concrete beam foundations.
Applications in Residential and Commercial Buildings
Concrete beam foundations support both homes and commercial buildings, giving steady footing for all sorts of structures. Each project has its own design and construction quirks, depending on weight, ground, and what the building will be used for.
Pier and Beam Houses
In plenty of neighborhoods, you’ll spot pier and beam houses—these sit up off the ground, thanks to concrete beams resting on piers. It’s a setup that handles shifting ground pretty well, especially where clay soils swell or flooding happens a lot.
The appeal? Better airflow under the house, simple access for plumbing fixes, and a bit more give if the soil moves. With crawl spaces, you can get to pipes or wires without tearing up the floor, which is a headache with a slab foundation.
Usually, these homes use pre-cast or poured concrete piers, and the beams are reinforced for strength. On sloped land, this kind of foundation is adjustable to the terrain. Of course, it’s not perfect—crawl spaces can get damp or attract pests, so you’ve got to keep them dry and sealed. If you want more nitty-gritty details, there’s a pretty thorough guide on pier and beam foundation.
Pier and Beam Homes
Pier and beam homes are just what they sound like: the whole house sits on a platform held up by concrete piers and beams. They’re common in flood-prone spots or where the dirt is too soft for a slab (which could crack).
Reinforced beams stretch across the piers, keeping floors level even if the ground shifts a bit. That gap underneath? It helps with insulation, so heating and cooling might cost less, and fixing a busted pipe is usually less of a pain.
There’s some upkeep, though. Crawl spaces need to stay dry, and beams shouldn’t sag. If you’re building on uneven ground or need something sturdy, a pier and beam foundation home is a smart pick for the long haul.
Concrete Beam Foundations for Commercial Structures
Concrete beam foundations aren’t just for houses—you’ll see them in commercial buildings too. They’re built to handle heavy loads, which is why offices, schools, and stores often use them.
Commercial versions mean thicker, stronger beams and deeper piers. Sometimes crews pour them on site; other times, they use pre-cast pieces, depending on what the job calls for and the ground they’re working with.
This design makes it possible to have bigger open rooms without lots of walls in the way. For multi-story or large buildings, commercial concrete foundations keep things stable and safe. They adapt to different soils pretty well and give you some flexibility in your building plans.
Diagrams, Maintenance, and Longevity
Getting a handle on how a concrete beam foundation works really helps when it comes to taking care of your place. Diagrams, routine checks, and a sense of what affects longevity all play a role in keeping things solid underneath you.
House Pier and Beam Foundation Diagram
A house pier and beam foundation uses beams, piers, and sometimes footings to hold up the structure.
Major parts include:
- Concrete beams: Run under the house, carrying the weight.
- Piers: Stand vertically beneath the beams—usually concrete or cinder blocks.
- Footings: Spread the load from piers into the ground.
- Girder: A main beam that cuts across the joists.
Here’s a simplified version of how it might look:
| Part | Material | Purpose |
| Beams | Concrete | Support floor loads |
| Piers | Concrete/Block | Vertical support |
| Footings | Concrete | Spread foundation |
| Girders | Wood/Steel | Extra support |
If you’re curious about cinder block setups, it’s a similar layout, just with the piers made from stacked blocks.
Inspection and Maintenance Best Practices
Regular inspections go a long way toward avoiding big repair bills. Once or twice a year, take a look for cracks in beams, piers that have shifted, or water pooling up near the foundation.
Here’s a quick checklist:
- Look for cracks, movement, or settling
- Watch out for water, mold, or mildew
- Check that beams and girders are straight and level
- Make sure crawl space vents keep things dry
- See that any cinder block piers aren’t shifting or breaking down
If you notice any damage or shifting, it’s smart to call a pro. Keeping the area around the foundation free of standing water and junk also helps a lot.
Lifespan and Durability Factors
If built right, concrete beam foundations can last as long as the house itself. Reinforced footings set below frost level are key—there’s a good rundown in the foundation guidelines.
What matters most?
- Quality materials: Strong concrete or solid cinder blocks make a difference.
- Proper install: Good drainage and footing depth really extend lifespan.
- Maintenance: Keep water out and check for damage to stop problems before they start.
A well-built concrete foundation usually won’t need replacing while you own the house. Still, things like shifting dirt, poor drainage, or tree roots can shorten its life, so regular checks are worth your time.
Frequently Asked Questions
Concrete beam foundations come with their own quirks—design, cost, and how they stack up against slab types. Which one’s best? It really depends on your lot, the dirt, and what you’re hoping to spend.
What is concrete beam foundation?
A concrete beam foundation uses poured concrete beams to carry the weight of a house or building. These beams rest on piers or footings set into the ground.
This setup spreads the load and works in spots with shifty or unstable soil.
How thick should concrete beams be?
Beam thickness depends on the size of the building and what it needs to hold up. For most homes, you’re looking at beams 8–12 inches wide and 16–24 inches deep.
Steel bars inside the concrete add strength. Local codes usually spell out what’s required for thickness and reinforcement, so always double-check those.
What is better, pier and beam or slab foundation?
Pier and beam setups make it easier to get to plumbing or wires—repairs are less of a hassle. They’re a good pick for places with poor drainage or ground that moves around.
Slab foundations are cheaper up front and give a flat, solid surface. They’re often better in areas with stable soil. If you want more real-world takes, there’s a lively thread on pier and beam versus slab you might want to check out.
How much does a concrete pier and beam foundation cost?
The cost of a concrete pier and beam foundation really depends on things like the size of your house, the soil, and what local labor charges look like. For most single-family homes, you’re probably looking at something in the $8,000 to $15,000 range. Of course, if the job gets tricky, the price can climb higher.
It’s a good idea to get a detailed estimate that factors in your property’s specific needs—especially the depth of the beams and piers.
